SOG Type_GA
มีผู้ชม 4327 ครั้ง

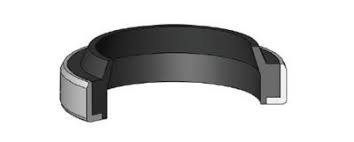

GA wiper seals (R09)
Metric size NBR

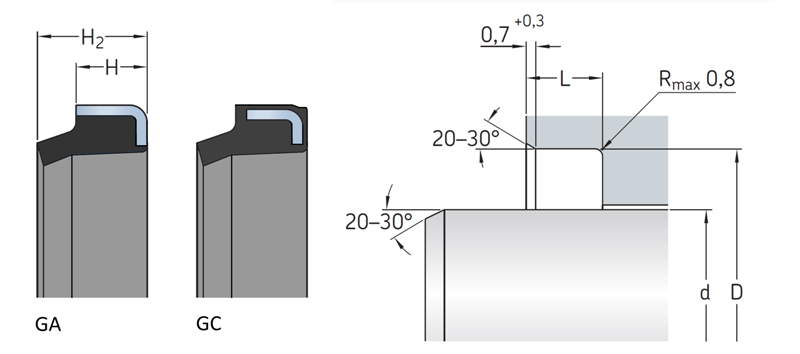

Cylinder Dimensions
d |
D |
H |
H2 |
Designation
|
| |
|
|
|
Unit : mm |
| 16 |
22 |
3.5 |
5 |
GA 16x22x3.5/5 NBR |
| 16 |
22 |
3 |
4 |
GA 16x22x3/4 NBR |
| 16 |
24 |
3.5 |
5.5 |
GA 16x24x3.5/5.5 NBR |
| 16 |
24 |
5 |
8 |
GA 16x24x5/8 NBR |
| 16 |
26 |
5 |
8 |
GA 16x26x5/8 NBR |
| 16 |
28 |
5 |
8 |
GA 16x28x5/8 NBR |
| |
|
|
|
|
| 18 |
24 |
3 |
5 |
GA 18x24x3/5 NBR |
| 18 |
24 |
5 |
7 |
GA 18x24x5/7 NBR |
| 18 |
26 |
5 |
7 |
GA 18x26x5/7 NBR |
| 18 |
26 |
7 |
10 |
GA 18x26x7/10 NBR |
| 18 |
28 |
3.5 |
5 |
GA 18x28x3.5/5 NBR |
| 18 |
28 |
5 |
7 |
GA 18x28x5/7 NBR |
| 18 |
28 |
7 |
10 |
GA 18x28x7/10 NBR |
| 18 |
32 |
5 |
9 |
GA 18x32x5/9 NBR |
| 18 |
35 |
5 |
8 |
GA 18x35x5/8 NBR |
| |
|
|
|
|
| 20 |
26 |
3.5 |
5 |
GA 20x26x3.5/5 NBR |
| 20 |
26 |
5 |
7 |
GA 20x26x5/7 NBR |
| 20 |
28 |
3.5 |
5 |
GA 20x28x3.5/5 NBR |
| 20 |
28 |
4 |
6 |
GA 20x28x4/6 NBR |
| 20 |
28 |
5 |
8 |
GA 20x28x5/8 NBR |
| 20 |
30 |
4 |
6 |
GA 20x30x4/6 NBR |
| 20 |
30 |
5 |
8 |
GA 20x30x5/8 NBR |
| 20 |
30 |
7 |
10 |
GA 20x30x7/10 NBR |
| 20 |
35 |
7 |
10 |
GA 20x35x7/10 NBR |
| 20 |
37 |
4 |
6 |
GA 20x37x4/6 NBR |
| |
|
|
|
|
| 22 |
28 |
3 |
4 |
GA 22x28x3/4 NBR |
| 22 |
28 |
5 |
8 |
GA 22x28x5/8 NBR |
| 22 |
30 |
5 |
7 |
GA 22x30x5/7 NBR |
| 22 |
32 |
5 |
7 |
GA 22x32x5/7 NBR |
| 22 |
32 |
7 |
10 |
GA 22x32x7/10 NBR |
| 22 |
34 |
7 |
10 |
GA 22x34x7/10 NBR |
| 22 |
35 |
5 |
8 |
GA 22x35x5/8 NBR |
| 23 |
33 |
5 |
8 |
GA 23x33x5/8 NBR |
| 24 |
32 |
5 |
7 |
GA 23x32x5/7 NBR |
| |
|
|
|
|
| 25 |
31 |
5 |
7 |
GA 25x31x5/7 NBR |
| 25 |
32 |
5 |
7 |
GA 25x32x5/7 NBR |
| 25 |
33 |
4 |
7 |
GA 25x33x4/7 NBR |
| 25 |
35 |
5 |
7 |
GA 25x35x5/7 NBR |
| 25 |
35 |
7 |
10 |
GA 25x35x7/10 NBR |
| 25 |
37 |
7 |
10 |
GA 25x37x7/10 NBR |
| 25 |
38 |
7 |
10 |
GA 25x38x7/10 NBR |
| 25 |
45 |
7 |
10 |
GA 25x45x7/10 NBR |
| |
|
|
|
|
| 28 |
35 |
5 |
8 |
GA 28x35x5/8 NBR |
| 28 |
36 |
5 |
7 |
GA 28x36x5/7 NBR |
| 28 |
38 |
5 |
8 |
GA 28x38x5/8 NBR |
| 28 |
38 |
7 |
10 |
GA 28x38x7/10 NBR |
| 28 |
40 |
5 |
7 |
GA 28x40x5/7 NBR |
| 28 |
40 |
7 |
10 |
GA 28x40x7/10 NBR |
| 28 |
42 |
5 |
8 |
GA 28x42x5/8 NBR |
| 28 |
42 |
7 |
10 |
GA 28x42x7/10 NBR |
| |
|
|
|
|
| 30 |
38 |
5 |
7 |
GA 30x38x5/7 NBR |
| 30 |
40 |
4 |
6 |
GA 30x40x4/6 NBR |
| 30 |
40 |
5 |
8 |
GA 30x40x5/8 NBR |
| 30 |
40 |
7 |
10 |
GA30x40x7/10 NBR |
| 30 |
42 |
6 |
9 |
GA 30x42x6/9 NBR |
| 30 |
45 |
5 |
8 |
GA 30x45x5/8 NBR |
| 30 |
45 |
7 |
10 |
GA 30x45x7/10 NBR |
| 30 |
47 |
5 |
7 |
GA 30x47x5/7 NBR |
| |
|
|
|
|
| 32 |
40 |
4 |
7 |
GA 32x40x4/7 NBR |
| 32 |
40 |
7 |
10 |
GA 32x40x7/10 NBR |
| 32 |
42 |
5 |
7 |
GA 32x42x5/7 NBR |
| 32 |
42 |
7 |
10 |
GA 32x42x7/10 NBR |
| 32 |
44 |
4 |
6.5 |
GA 32x44x4/6.5 NBR |
| 32 |
45 |
5 |
7 |
GA 32x45x5/7 NBR |
| 32 |
45 |
7 |
10 |
GA 32x45x7/10 NBR |
| 32 |
48 |
6 |
8 |
GA 32x48x6/8 NBR |
| |
|
|
|
|
| 35 |
45 |
5 |
8 |
GA 35x45x5/8 NBR |
| 35 |
45 |
7 |
10 |
GA 35x45x7/10 NBR |
| 35 |
48 |
6.5 |
12 |
GA 35x48x6.5/12 NBR |
| 35 |
50 |
7 |
10 |
GA 35x50x7/10 NBR |
| 35 |
52 |
7 |
10 |
GA 35x52x7/10 NBR |
| 35 |
53 |
5 |
7 |
GA 35x53x5/7 NBR |
| 35 |
55 |
7 |
10 |
GA 35x55x7/10 NBR |
| |
|
|
|
|
| 36 |
44 |
5 |
7 |
GA 36x44x5/7 NBR |
| 36 |
45 |
7 |
10 |
GA 36x45x7/10 NBR |
| 36 |
46 |
5 |
8 |
GA 36x46x5/8 NBR |
| 36 |
46 |
7 |
10 |
GA 36x46x7/10 NBR |
| 36 |
47 |
7 |
10 |
GA 36x47x7/10 NBR |
| 37 |
47 |
5 |
8 |
GA 37x47x5/8 NBR |
| 37 |
50 |
7 |
10 |
GA 37x50x7/10 NBR |
| |
|
|
|
|
| 38 |
48 |
7 |
10 |
GA 38x48x7/10 NBR |
| 38 |
53 |
5 |
8 |
GA 38x53x5/8 NBR |
| 38 |
58 |
7 |
10 |
GA 38x58x7/10 NBR |
GA wiper seals (R09)
Metric size NBR
Cylinder Dimensions
d |
D |
H |
H2 |
Designation
|
| |
|
|
|
Unit : mm |
| 40 |
46 |
5 |
8 |
GA 40x46x5/8 NBR |
| 40 |
48 |
5 |
7 |
GA 40x48x5/7 NBR |
| 40 |
50 |
5 |
8 |
GA 40x50x5/8 NBR |
| 40 |
50 |
7 |
10 |
GA 40x50x7/10 NBR |
| 40 |
52 |
5 |
8 |
GA 40x52x5/8 NBR |
| 40 |
52 |
7 |
10 |
GA 40x52x7/10 NBR |
| 40 |
53 |
5 |
8 |
GA 40x53x5/8 NBR |
| 40 |
56 |
5 |
8 |
GA 40x56x5/8 NBR |
| 40 |
60 |
7 |
10 |
GA 40x60x7/10 NBR |
| 40 |
62 |
7 |
10 |
GA 40x62x7/10 NBR |
| 42 |
50 |
7 |
10 |
GA 42x50x7/10 NBR |
| 42 |
52 |
7 |
10 |
GA 42x52x7/10 NBR |
| 43 |
55 |
7 |
10 |
GA 43x55x7/10 NBR |
| 45 |
53 |
5 |
7 |
GA 45x53x5/7 NBR |
| 45 |
55 |
5 |
7 |
GA 45x55x5/7 NBR |
| 45 |
55 |
7 |
10 |
GA 45x55x7/10 NBR |
| 45 |
57 |
7 |
10 |
GA 45x57x7/10 NBR |
| 45 |
58 |
7 |
10 |
GA 45x58x7/10 NBR |
| 45 |
60 |
7 |
10 |
GA 45x60x7/10 NBR |
| 46 |
55 |
7 |
10 |
GA 46x55x7/10 NBR |
| |
|
|
|
|
| 50 |
56 |
5 |
7 |
GA 50x56x5/7 NBR |
| 50 |
56 |
7 |
10 |
GA 50x56x7/10 NBR |
| 50 |
58 |
5 |
7 |
GA 50x58x5/7 NBR |
| 50 |
60 |
5 |
7 |
GA 50x60x5/7 NBR |
| 50 |
60 |
7 |
10 |
GA 50x60x7/10 NBR |
| 50 |
62 |
5 |
8 |
GA 50x62x5/8 NBR |
| 50 |
62 |
7 |
10 |
GA 50x62x7/10 NBR |
| 50 |
65 |
5 |
8 |
GA 50x65x5/8 NBR |
| 50 |
65 |
7 |
10 |
GA 50x65x7/10 NBR |
| 50 |
70 |
7 |
10 |
GA 50x70x7/10 NBR |
| 50 |
85 |
7 |
10 |
GA 50x85x7/10 NBR |
| |
|
|
|
|
| 52 |
62 |
7 |
10 |
GA 52x62x7/10 NBR |
| 55 |
63 |
5 |
7 |
GA 55x63x5/7 NBR |
| 55 |
65 |
5 |
7 |
GA 55x65x5/7 NBR |
| 55 |
65 |
7 |
10 |
GA 55x65x7/10 NBR |
| 55 |
68 |
4 |
7 |
GA 55x68x4/7 NBR |
| 55 |
70 |
7 |
10 |
GA 55x70x7/10 NBR |
| 56 |
65 |
5 |
7 |
GA 56x65x5/7 NBR |
| 56 |
65 |
7 |
10 |
GA 56x65x7/10 NBR |
| 56 |
66 |
5 |
7 |
GA 56x66x5/7 NBR |
| 56 |
66 |
7 |
10 |
GA 56x66x7/10 NBR |
| 56 |
71 |
7 |
10 |
GA 56x71x7/10 NBR |
| |
|
|
|
|
| 60 |
68 |
5 |
7 |
GA 60x68x5/7 NBR |
| 60 |
70 |
5 |
7 |
GA 60x70x5/7 NBR |
| 60 |
70 |
7 |
10 |
GA 60x70x7/10 NBR |
| 60 |
72 |
5 |
7 |
GA 60x72x5/7 NBR |
| 60 |
74 |
5 |
8 |
GA 60x74x5/8 NBR |
| 60 |
75 |
7 |
10 |
GA 60x75x7/10 NBR |
| 60 |
78 |
11 |
15 |
GA 60x78x11/15 NBR |
| 60 |
80 |
7 |
10 |
GA 60x80x7/10 NBR |
| |
|
|
|
|
| 62 |
72 |
7 |
10 |
GA 62x72x7/10 NBR |
| 63 |
73 |
5 |
7 |
GA 63x73x5/7 NBR |
| 63 |
73 |
7 |
10 |
GA 63x73x7/10 NBR |
| 63 |
75 |
7 |
10 |
GA 63x75x7/10 NBR |
| 63 |
80 |
5 |
7 |
GA 63x80x5/7 NBR |
| 65 |
75 |
5 |
7 |
GA 65x75x5/7 NBR |
| 65 |
75 |
7 |
10 |
GA 65x75x7/10 NBR |
| 65 |
85 |
7 |
10 |
GA 65x85x7/10 NBR |
| |
|
|
|
|
| 70 |
80 |
5 |
7 |
GA 70x80x5/7 NBR |
| 70 |
80 |
7 |
10 |
GA 70x80x7/10 NBR |
| 70 |
85 |
7 |
10 |
GA 70x85x7/10 NBR |
| 70 |
90 |
7 |
10 |
GA 70x90x7/10 NBR |
| 72 |
82 |
7 |
10 |
GA 72x82x7/10 NBR |
| 75 |
83 |
7 |
10 |
GA 75x83x7/10 NBR |
| 75 |
85 |
7 |
10 |
GA 75x85x7/10 NBR |
| 75 |
87 |
5 |
7 |
GA 75x87x5/7 NBR |
| 78 |
88 |
7 |
10 |
GA 78x88x7/10 NBR |
| |
|
|
|
|
| 80 |
88 |
5 |
7 |
GA 80x88x5/7 NBR |
| 80 |
88 |
7 |
10 |
GA 80x88x7/10 NBR |
| 80 |
90 |
7 |
10 |
GA 80x90x7/10 NBR |
| 80 |
95 |
7 |
10 |
GA 80x95x7/10 NBR |
| 80 |
100 |
12 |
15 |
GA 80x100x12/15 NBR |
| 84 |
94 |
5 |
8 |
GA 84x94x5/8 NBR |
| 85 |
95 |
7 |
10 |
GA 85x95x7/10 NBR |
| |
|
|
|
|
| 90 |
100 |
7 |
10 |
GA 90x100x7/10 NBR |
| 90 |
110 |
7 |
10 |
GA 90x110x7/10 NBR |
| 93 |
105 |
7 |
10 |
GA 93x105x7/10 NBR |
| 95 |
105 |
7 |
10 |
GA 95x105x7/10 NBR |
| |
|
|
|
|
| 100 |
110 |
7 |
10 |
GA 100x110x7/10 NBR |
| 100 |
115 |
9 |
12 |
GA 100x115x9/12 NBR |
| 110 |
120 |
7 |
10 |
GA 110x120x7/10 NBR |
| 110 |
125 |
7 |
10 |
GA 110x125x7/10 NBR |
| 110 |
125 |
9 |
12 |
GA 110x125x9/12 NBR |
| 115 |
125 |
7 |
10 |
GA 115x125x7/10 NBR |
GA wiper seals (R09)
Metric size_NBR
Cylinder Dimensions
d |
D |
H |
H2 |
Designation
|
| |
|
|
|
Unit : mm |
| 120 |
130 |
7 |
10 |
GA 120x130x7/10 NBR |
| 120 |
135 |
7 |
10 |
GA 120x135x7/10 NBR |
| 125 |
137 |
7 |
10 |
GA 125x137x7/10 NBR |
| 125 |
140 |
9 |
12 |
GA 125x140x9/12 NBR |
| 130 |
140 |
7 |
10 |
GA 130x140x7/10 NBR |
| 130 |
145 |
9 |
12 |
GA 130x145x9/12 NBR |
| 135 |
145 |
7 |
10 |
GA 135x145x7/10 NBR |
| 140 |
155 |
9 |
12 |
GA 140x155x9/12 NBR |
| |
|
|
|
|
| 150 |
165 |
9 |
12 |
GA 150x165x9/12 NBR |
| 160 |
175 |
7 |
12 |
GA 160x175x7/12 NBR |
| 160 |
175 |
9 |
12 |
GA 160x175x9/12 NBR |
| 170 |
185 |
10 |
14 |
GA 170x185x10/14 NBR |
| 180 |
195 |
10 |
14 |
GA 180x195x10/14 NBR |
| 200 |
220 |
12 |
16 |
GA 200x220x12/16 NBR |
| 210 |
230 |
12 |
16 |
GA 210x230x12/16 NBR |
| 210 |
235 |
12 |
17 |
GA 210x235x12/17 NBR |
| |
|
|
|
|
| 220 |
240 |
12 |
16 |
GA 220x240x12/16 NBR |
| 225 |
250 |
12 |
16 |
GA 225x250x12/16 NBR |
| 240 |
260 |
12 |
16 |
GA 240x260x12/16 NBR |
| 250 |
265 |
10 |
16 |
GA 250x265x10/16 NBR |
| 250 |
270 |
12 |
16 |
GA 250x270x12/16 NBR |
| 260 |
290 |
12 |
16 |
GA 260x190x12/16 NBR |
| 300 |
320 |
12 |
16 |
GA 300x320x12/16 NBR |
| 320 |
340 |
12 |
16 |
GA 320x340x12/16 NBR |
|
 |
เปิดเว็บเมื่อ : 2015-07-22
จำนวนสมาชิก : 12 คน
ปรับปรุงเมื่อ : 2024-10-22
จำนวนครั้งที่ชม : 400,226 ครั้ง
Online : 14 คน
จำนวนสินค้า : 45 รายการ
|
|
Product
