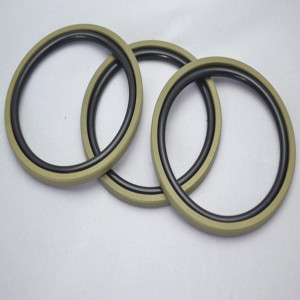

GH Profile Piston Seals
Metric sizes (SKF)
Glydring of PTFE
Material
|
Slide ring : PTFE 292
Energizer : NBR N70
|
Pressure
|
Up to 400 bar (5 800 psi)
|
| Speed |
Up to 1 m/s (3.2 ft/s) |

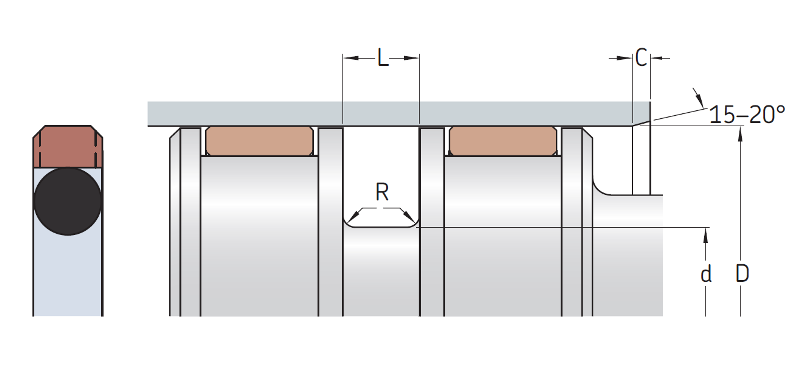

Cylinder Dimensions
D
H9 |
d
h9 |
L
0.05 |
R
max. |
C
min. |
Designation
|
| |
14 |
9.1 |
2.2 |
0.5 |
3 |
GH 14x9.1x2.2-AD1 |
18 |
10.5 |
3.2 |
0.5 |
5 |
GH 18x10.5x3.2-AD1 |
20
|
15.1
12.5 |
2.2
3.2 |
0.5
0.5 |
3
5 |
GH 20x15.1x2.2-AD1
GH 20x12.5x3.2-AD1 |
22 |
14.5 |
3.2 |
0.5 |
5 |
GH 22x14.5x3.2-AD1 |
25 |
17.5 |
3.2 |
0.5 |
5 |
GH 25x17.5x3.2-AD1 |
28 |
20.5 |
3.2 |
0.5 |
5 |
GH 28x20.5x3.2-AD1 |
30 |
22.5 |
3.2 |
0.5 |
5 |
GH 30x22.5x3.2-AD1 |
32 |
24.5 |
3.2 |
0.5 |
5 |
GH 32x24.5x3.2-AD1 |
35 |
27.5 |
3.2 |
0.5 |
5 |
GH 35x27.5x3.2-AD1 |
36 |
28.5 |
3.2 |
0.5 |
5 |
GH 36x28.5x3.2-AD1 |
40
|
32.5
29 |
3.2
4.2 |
0.5
0.5 |
5
7 |
GH 40x32.5x3.2-AD1
GH 40x29x4.2-AD1 |
45
|
37.5
34 |
3.2
4.2 |
0.5
0.5 |
5
7 |
GH 45x37.5x3.2-AD1
GH 45x34x4.2-AD1 |
50
|
39
34.5 |
4.2
6.3 |
0.5
0.5 |
7
10 |
GH 50x39x4.2-AD1
GH 50x34.5x6.3-AD1 |
60 |
49 |
4.2 |
0.5 |
7 |
GH 60x49x4.2-AD1 |
65 |
54 |
4.2 |
0.9 |
7 |
GH 65x54x4.2-AD1 |
70 |
59 |
4.2 |
0.9 |
7 |
GH 70x59x4.2-AD1 |
75
|
64
59.5 |
4.2
6.3 |
0.9
0.9 |
7
10 |
GH 75x64x4.2-AD1
GH 75x59.5x6.3-AD1 |
80
|
69
64.5 |
4.2
6.3 |
0.9
0.9 |
7
10 |
GH 80x69x4.2-AD1
GH 80x64.5x6.3-AD1 |
85
|
74
69.5 |
4.2
6.3 |
0.9
0.9 |
7
10 |
GH 85x74x4.2-AD1
GH 85x69.5x6.3-AD1 |
90
|
79
74.5 |
4.2
6.3 |
0.9
0.9 |
7
10 |
GH 90x79x4.2-AD1
GH 90x74.5x6.3-AD1 |
95
|
84
79.5 |
4.2
6.3 |
0.9
0.9 |
7
10 |
GH 95x84x4.2-AD1
GH 95x79.5x6.3-AD1 |
100
|
84.5
79 |
6.3
8.1 |
0.9
0.9 |
10
12 |
GH 100x84.5x6.3-AD1
GH 100x79x8.1-AD1 |
105 |
89.5 |
6.3 |
0.9 |
10 |
GH 105x89.5x6.3-AD1 |
110 |
94.5 |
6.3 |
0.9 |
10 |
GH 110x94.5x6.3-AD1 |
115 |
99.5 |
6.3 |
0.9 |
10 |
GH 115x99.5x6.3-AD1 |
120 |
104.5 |
6.3 |
0.9 |
10 |
GH 120x104.5x6.3-AD1 |
125
|
109.5
104 |
6.3
8.1 |
0.9
0.9 |
10
12 |
GH 125x109.5x6.3-AD1
GH 125x104x8.1-AD1 |
130
|
114.5
109 |
6.3
8.1 |
0.9
0.9 |
10
12 |
GH 130x114.5x6.3-AD1
GH 130x109x8.1-AD1 |
140
|
124.5
119 |
6.3
8.1 |
0.9
0.9 |
10
12 |
GH 140x124.5x6.3-AD1
GH 140x119x8.1-AD1 |
150
|
134.5
129 |
6.3
8.1 |
0.9
0.9 |
10
12 |
GH 150x134.5x6.3-AD1
GH 150x129x8.1-AD1 |
160
|
144.5
139 |
6.3
8.1 |
0.9
0.9 |
10
12 |
GH 160x144.5x6.3-AD1
GH 160x139x8.1-AD1 |
170 |
149 |
8.1 |
0.9 |
12 |
GH 170x149x8.1-AD1 |
180 |
159 |
8.1 |
0.9 |
12 |
GH 180x159x8.1-AD1 |
190 |
169 |
8.1 |
0.9 |
12 |
GH 190x169x8.1-AD1 |
200 |
179 |
8.1 |
0.9 |
12 |
GH 200x179x8.1-AD1 |
|
 |
