MD-L profile piston seal (DAS)
,SKF Metric sizes
Materials
|
Sealing ring : NBR N70
Guide rings : POM/076
Support rings : TPC ET72/075
|
Pressure
|
Uu to 250 bar (3 625 psi)
|
| Speed |
Up to 1 m/s (3.2 ft/s) |

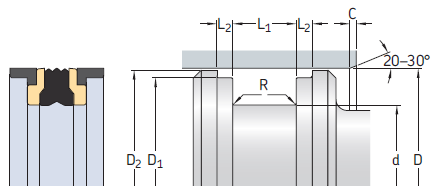

Cylinder Dimensions
D
H9 |
d
h9 |
L1
+0.1/+0.35 |
L2
+0.2 |
D1
h9 |
D2
h11 |
Designation
|
| |
|
|
|
|
|
Unit : mm |
25 |
15 |
12.4 |
4 |
21 |
23 |
MD 25x15x12.4-L |
30 |
21 |
13.5 |
2.1 |
27 |
29 |
MD 30x21x13.5-L |
32 |
22 |
12.5 |
4 |
29 |
31 |
MD 32x22x12.5-L |
| |
24 |
10 |
4 |
29 |
31 |
MD 32x24x10-L |
| |
24 |
15.5 |
3.2 |
28 |
31.4 |
MD 32x24x15.5-L |
35 |
25 |
15.5 |
2.6 |
31 |
34 |
MD 35x25x15.5-L |
| |
25 |
16.4 |
6.4 |
31.4 |
33.5 |
MD 35x25x16.4-L |
40 |
24 |
18.4 |
6.4 |
35.4 |
38.7 |
MD 40x24x18.4-L |
| |
30 |
12.4 |
4 |
36 |
38 |
MD 40x30x12.4-L |
| |
30 |
12.5 |
4 |
37 |
39 |
MD 40x30x12.5-L |
| |
30 |
16.4 |
6.4 |
35.4 |
38.7 |
MD 40x30x16.4-L |
| |
32 |
15.5 |
3.2 |
36 |
39.4 |
MD 40x32x15.5-L |
45 |
29 |
18.4 |
6.4 |
40.4 |
43.7 |
MD 45x29x18.4-L |
| |
37 |
15.5 |
3.2 |
41 |
43.5 |
MD 45x37x15.5-L |
50 |
34 |
18.4 |
6.4 |
45.4 |
48.7 |
MD 50x34x18.4-L |
| |
35 |
20 |
5 |
46 |
48.5 |
MD 50x35x20-L |
| |
38 |
20.5 |
4.2 |
46 |
49.4 |
MD 50x38x20.5-L |
| |
40 |
12.5 |
4 |
47 |
49 |
MD 50x40x12.5-L |
55 |
39 |
18.4 |
6.4 |
50.4 |
53.7 |
MD 55x39x18.4-L |
| |
39 |
20.5 |
3.1 |
51 |
54 |
MD 55x39x20.5-L |
| |
45 |
12.5 |
4 |
52 |
54 |
MD 55x45x12.5-L |
60 |
44 |
18.4 |
6.4 |
55.4 |
58.7 |
MD 60x44x18.4-L |
| |
48 |
20.5 |
4.2 |
56 |
59.4 |
MD 60x48x20.5-L |
63 |
47 |
18.4 |
6.4 |
58.4 |
61.5 |
MD 63x47x18.4-L |
| |
47 |
19.4 |
6.4 |
58.4 |
61.7 |
MD 63x47x19.4-L |
| |
47 |
20.5 |
3.1 |
59 |
62 |
MD 63x47x20.5-L |
| |
48 |
20 |
5 |
59 |
61.5 |
MD 63x48x20-L |
| |
51 |
20.5 |
4.2 |
59 |
62.4 |
MD 63x51x20.5-L |
| |
53 |
12.5 |
4 |
60 |
62 |
MD 63x63x12.5-L |
65 |
50 |
18.4 |
6.4 |
60.4 |
63.7 |
MD 65x50x18.4-L |
70 |
50 |
22.4 |
6.4 |
64.2 |
68.3 |
MD 70x50x22.4-L |
| |
54 |
20.5 |
3.1 |
66 |
69 |
MD 70x54x20.5-L |
| |
55 |
20 |
5 |
66 |
68.5 |
MD 70x55x20-L |
| |
58 |
20.5 |
4.2 |
66 |
69.4 |
MD 70x58x20.5-L |
75 |
55 |
22.4 |
6.4 |
69.2 |
73.3 |
MD 75x55x22.4-L |
80 |
60 |
22.4 |
6.4 |
74.2 |
78.3 |
MD 80x60x22.4-L |
| |
60 |
25 |
6.3 |
75 |
78 |
MD 80x60x25-L |
| |
62 |
22.5 |
3.6 |
76 |
79 |
MD 80x62x22.5-L |
| |
65 |
20 |
5 |
76 |
78.5 |
MD 80x65x20-L |
| |
66 |
22.5 |
5.2 |
76 |
79.4 |
MD 80x66x22.5-L |
85 |
65 |
22.4 |
6.4 |
79.2 |
83.3 |
MD 85x65x22.4-L |
90 |
70 |
22.4 |
6.4 |
84.2 |
88.3 |
MD 90x70x22.4-L |
| |
72 |
22.5 |
3.6 |
86 |
89 |
MD 90x72x22.5-L |
| |
75 |
20 |
5 |
86 |
88.5 |
MD 90x75x20-L |
95 |
75 |
22.4 |
6.4 |
89 |
93.3 |
MD 95x75x22.4-L |
100 |
75 |
22.4 |
6.4 |
93.2 |
98 |
MD 100x75x22.4-L |
| |
80 |
25 |
6.3 |
95 |
98 |
MD 100x80x25-L |
| |
85 |
20 |
5 |
96 |
98.5 |
MD 100x85x20-L |
| |
86 |
22.5 |
5.2 |
96 |
99.4 |
MD 100x86x22.5-L |
| |
|
|
|
|
|
|
MD-L profile piston seals (DAS)
,SKF Metric sizes
Cylinder Dimensions
D
H9 |
d
h9 |
L1
+0.1/+0.35 |
L2
+0.2 |
D1
h9 |
D2
h11 |
Designation
|
| |
|
|
|
|
|
Unit : mm |
| 105 |
92.5 |
14 |
5.2 |
99 |
103.5 |
MD 105x92.5x14-L |
110 |
85 |
22.4 |
6.4 |
103.1 |
108 |
MD 110x85x22.4-L |
| |
85 |
25.4 |
6.4 |
103.1 |
108 |
MD 110x85x25.4-L |
| |
95 |
20 |
5 |
106 |
108.5 |
MD 110x95x20-L |
| |
96 |
22.5 |
5.2 |
106 |
109.4 |
MD 110x96x22.5-L |
115 |
90 |
22.4 |
6.4 |
108.1 |
113 |
MD 115x90x22.4-L |
120 |
95 |
22.4 |
6.4 |
113.1 |
118 |
MD 120x95x22.4-L |
125 |
100 |
25.4 |
6.4 |
118.1 |
123 |
MD 125x100x25.4-L |
| |
100 |
32 |
10 |
119 |
123 |
MD 125x100x32-L |
| |
105 |
25 |
6.3 |
120 |
123 |
MD 125x105x25-L |
| |
105 |
25.4 |
6.4 |
119.1 |
123.3 |
MD 125x105x25.4-L |
| |
108 |
26.5 |
7.2 |
121 |
124.4 |
MD 125x108x26.5-L |
130 |
105 |
25.4 |
6.4 |
123.1 |
128 |
MD 130x105x25.4-L |
140 |
115 |
25.4 |
6.4 |
133 |
138 |
MD 140x115x25.4-L |
| |
120 |
25 |
6.3 |
135 |
138 |
MD 140x120x25-L |
145 |
120 |
25.4 |
6.4 |
138.3 |
143 |
MD 145x120x25.4-L |
150 |
125 |
25.4 |
6.4 |
143 |
148 |
MD 150x125x25.4-L |
160 |
130 |
25.4 |
6.4 |
153 |
157.9 |
MD 160x130x25.4-L |
| |
135 |
25.4 |
9.5 |
152.6 |
157.5 |
MD 160x135x25.4-L |
| |
140 |
25 |
6.3 |
155 |
158 |
MD 160x140x25-L |
170 |
145 |
25.4 |
12.7 |
161.7 |
167.1 |
MD 170x145x25.4x12.7-L |
180 |
150 |
35.4 |
6.4 |
173 |
178 |
MD 180x150x35.4-L |
| |
155 |
25.4 |
12.7 |
171.7 |
177.7 |
MD 180x155x25.4x12.7-L |
200 |
170 |
35.4 |
6.4 |
193 |
198 |
MD 200x170x35.4-L |
| |
170 |
36 |
12.5 |
192 |
197 |
MD 200x170x36-L |
| |
180 |
31.5 |
9.2 |
196 |
199.4 |
MD 200x180x31.5-L |
220 |
190 |
35.4 |
6.4 |
213 |
218 |
MD 220x190x35.4-L |
| |
195 |
25.4 |
12.7 |
211.6 |
217 |
MD 220x195x25.4x12.7-L |
250 |
220 |
35.4 |
6.4 |
243 |
248 |
MD 250x220x35.4-L |
| |
|
|
|
|
|
|
|
 |
